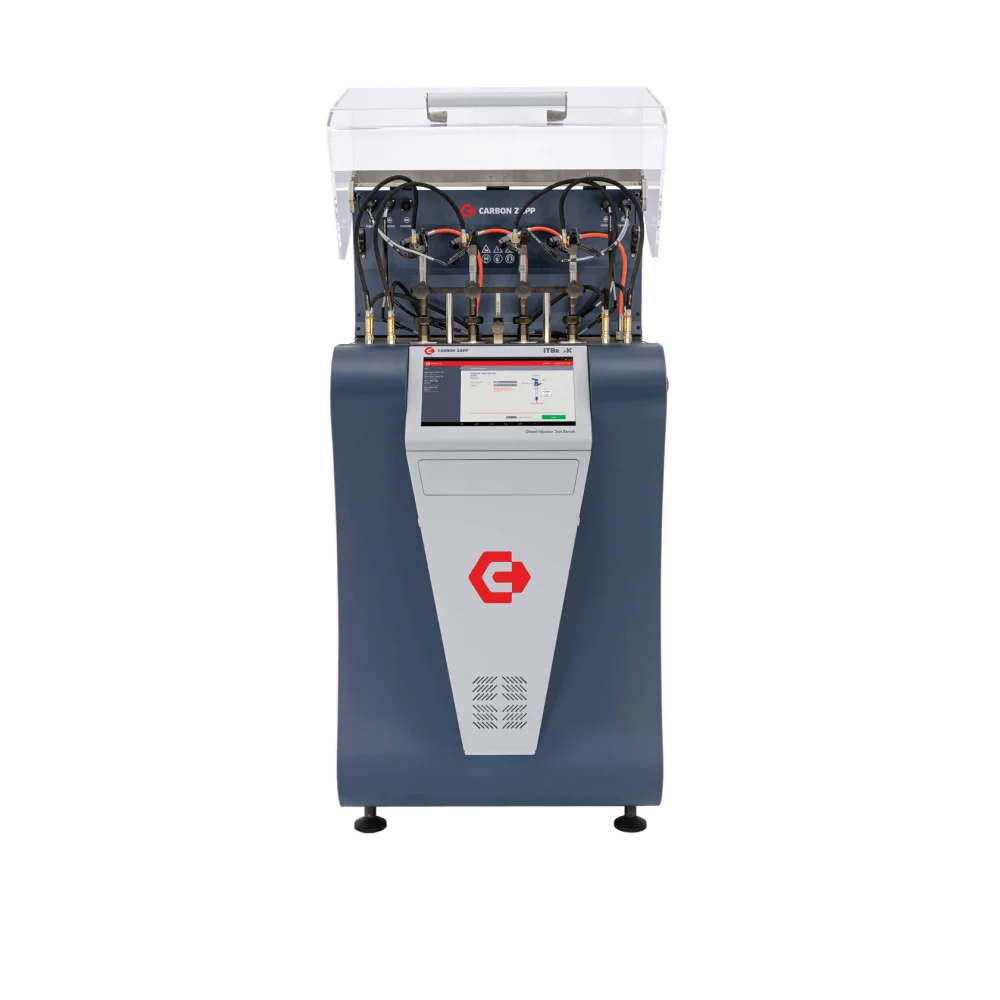

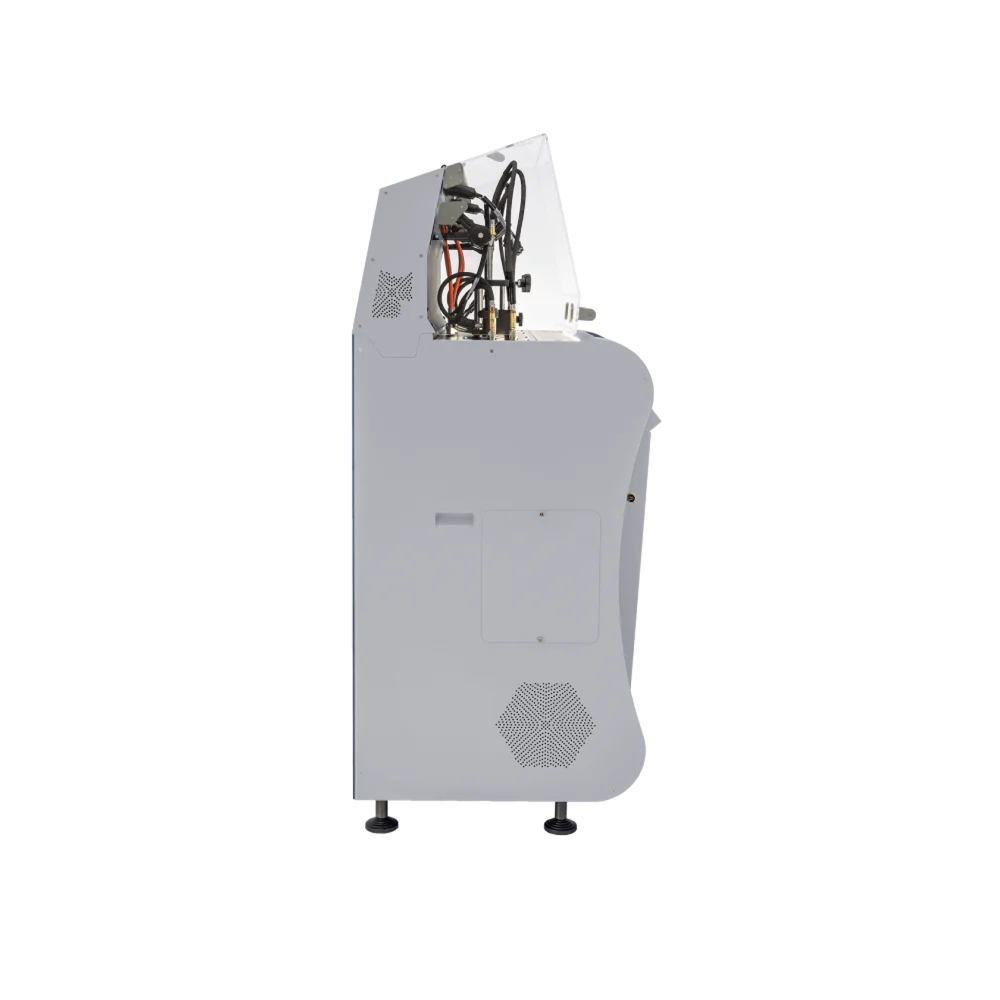

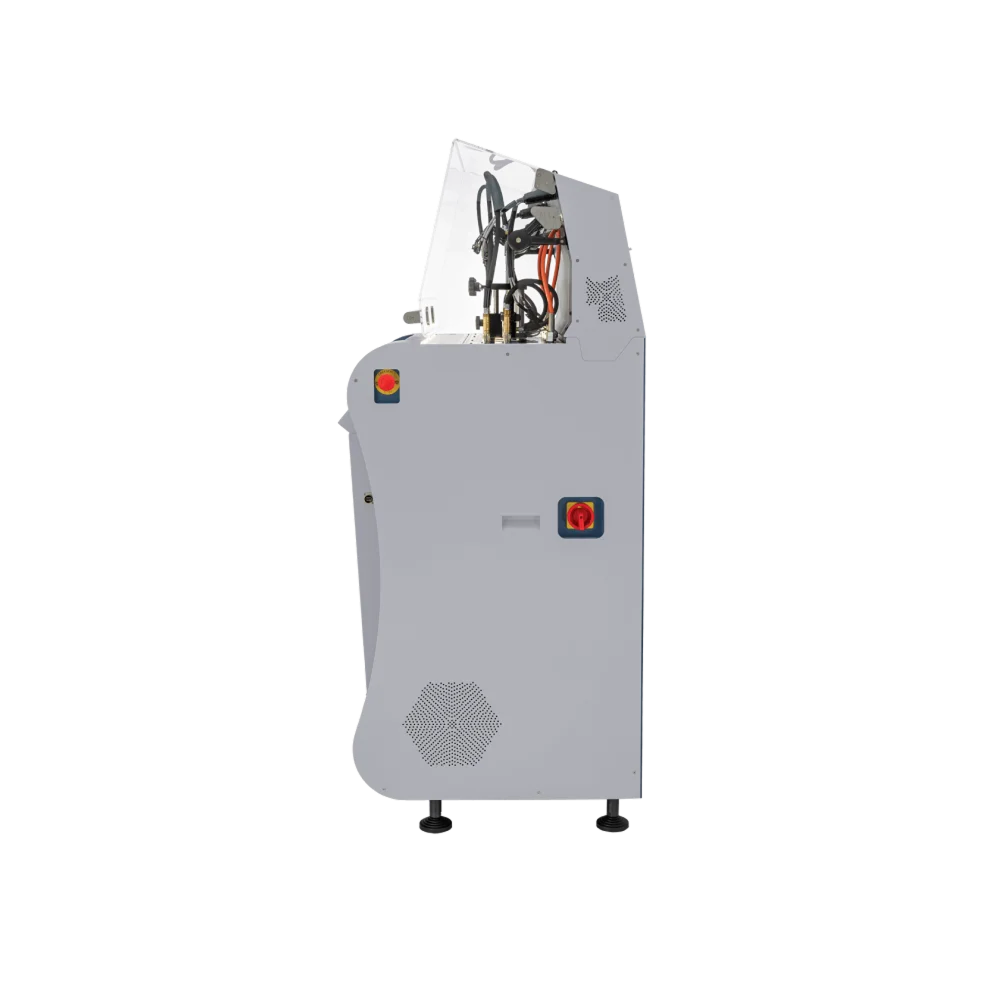

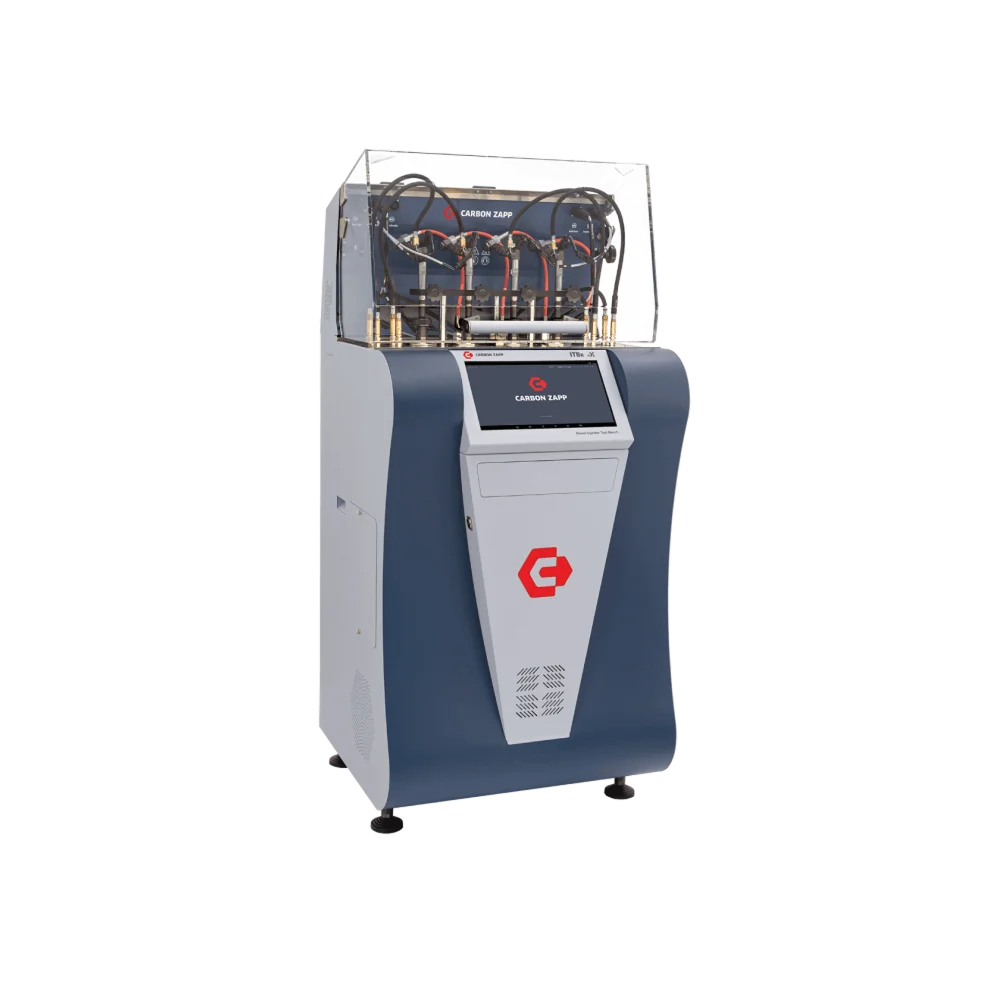

ITB.4R | X Carbon Zapp Code(SKU) CZ-008771

product photo
product photo
product photo
product photo
product photo
product photo
Check

ITB.4R-X Carbon Zapp — professional test bench for diagnostics, testing and coding of diesel Common Rail injectors (CRDi and CRiN).

Designed for diesel service centers and fuel system repair workshops, the bench provides precise and rapid testing of up to 4 injectors simultaneously, including EU6 and Heavy-Duty systems from all major manufacturers (Bosch, Denso, Delphi, Continental/VDO and others).

ITB.4R-X advantages:

  • testing and coding of up to 4 CR injectors simultaneously
  • support for CRDi and CRiN EU6 technologies
  • pressure up to 2800 bar
  • compatibility with all injector brands
  • Heavy-Duty injectors (XPI, CRIN 4.2 and others)
  • delivery and return flow measurement
  • CloudX platform
  • professional solution for diesel service
CZ_DIESEL_SPECIALIST_ITB4RX
photo tools
  • ITB.4RIX-Pack1 (STANDARD PACKAGE)

    Exclusive Package Includes:[(AZO.B4Mx1], [(SVI.01, BCI.01, CZI.01, BCN.B, DFI.01, DFI.02, BPI.01, DEU.01, DGXS-A, DGXS-B, DG2P-A, DG3P-A, CZ-007356) x 4

  • ITB.4R|X-Pack_2

    Exclusive CRDi Coding Package Includes: [(BC.01, DLC.03, DNC.04.v2)x1], RSPx4, [(007110, 007111) x1]

  • ITB.4R|X-Pack_3

    Exclusive Specialists CRDi coding Package Includes: [(BC.01, DLC.03, DNC.04.v2)x1], [(CZ-007359, RSP)x4], CRS.24x2, [(007110, 007111) x1] [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007350 & CZ-007356]

  • BC.01

    Bosch Coding IMA/ISA

  • DLC.03

    DELPHI CODING C2i AND C3i (Requires RSP)

  • DNC.04.v2

    DENSO CODING QR Including QR-32 (Requires RSP)

  • DNC.05

    DENSO CODING SOFTWARE QR-32 [Requires RSP]

  • DNC.06

    DENSO CUMMINS CODING SOFTWARE QR-28 [Requires RSP]

  • VC.15

    ALL MAKES VDO CODING [FOR NON-DRS PARTNERS ONLY] (Requires RSP)

  • AZO.B4M

    BOOST INJECTOR MEASUREMENT MODE FOR MTBR/TBCR UNITS

  • CZ-008775

    CAT CRI - CATERPILLAR CODING SOFTWARE [Requires RSP]

  • DLC.04

    C4i Delphi Coding.[Requires RSP , CZ-007361 , CZ-007347]

  • CZ-007707

    License activation for Pressure Sensor Element [RDS]

  • CZ-007177

    DAF-I - DAF Smart Injector Coding MTBR/ITBR/TBCR/DCDR [Requires RSP]

  • CZ-800150

    DAFi (EU6) Injector Coding MTBR/ITBR/ETBRX/TBCR/DCDR [Requires RSP]

  • GCC.06

    SIEMENS / VDO GDI CODING (BMW 10181010)

  • GBC

    BOSCH GASOLINE ACTIVATION LICENSE

  • ΑΖΟ.GD-i

    SOFTWARE UPGRADE LICENSE FOR TESTING GASOLINE GDi & MPFi INJECTORS

  • CZ-007590

    DENSO iART INJECTOR SOFTWARE ACTIVASION FOR PRESSURE & TEMPRATURE CHECK

  • CZ-007608

    VDO/CONTINENATL IIC.2 CODING (REQUIRES RSP)

  • IMA 4.2

    BOSCH CRIN 4.2 IMA CODING MTBR/ITBR/TBCR/DCDR

  • CZ-007659

    CGL License for activation

  • JD.01

    John Deere Injector Coding Software for AZO (Requires RSP) ( For All engines except ISUZU & CAT )

  • JD.02

    John Deere Injector Coding Software for AZO (Requires RSP) ( for CAT engines )

  • JD.03

    John Deere Injector Coding Software for AZO (Requires RSP) ( for ISUZU engines )

  • CZ-007359

    DIESEL CRi INJECTOR PRESSURIZED RETURN HOSE ADAPTERS KIT (PIR) [Includes 0.8 / 1.3 / 2 / 6 / 10 bar] [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007350]

  • CZ-007350

    DIESEL CRi INJECTOR RETURN HOSE ADAPTERS KIT (BCL)

  • CZ-007356

    MAIN BACK LEAK HOSE FOR INJECTOR RETURN ADAPTERS

  • RSP

    STANDARD NOZZLE RESPONSE SENSOR ( 7-9mm ) FOR MTBr|X , ITB.1r|X , ITB.4r|X , GTB.4r|X , HTBr|X.(REQUIRES CZ-007110 & CZ-007111)

  • CZ-007110

    ITB.4r | X - MAIN RSP [sh] Harness FOR SLOTS #1/#2 [SUCCESSOR: ITB4rX-sh.RSP-1/2]

  • CZ-007111

    ITB.4r | X - MAIN RSP [sh] Harness for SLOTS #3/#4 [SUCCESSOR: ITB4rX-sh.RSP-3/4]

  • SPR.D

    ILLIMINATED PRESSURISED SPRAY CHAMBER.(REQUIRES CZ-007112)

  • CZ-007112

    MAIN LED [sh] HARNESS FOR ITB.4R|X SPRAY TUBES [SUCCESSOR: ITB4rX-sh.LED-1/2]

  • RSP.HD

    HEAVY DUTY NOZZLE RESPONSE SENSOR - RSP.HD ( INCLUDED ADAPTER HDA.01 (7-9mm). REQUIRES COOLING SYSTEM T.B.A. )

  • HDA.02

    OPTIONAL FOR RSP-HD (11mm-MTU, etc...)[/pc]

  • HDA.03

    OPTIONAL FOR RSP-HD (16mm- L'ORANGE, etc...)[/pc]

  • CZ-007395

    ELECTRICAL CALIBRATED CABLE [ NOT INCLUDED SW ] COMPATIBILITY FOR CGL [RiD003793]

  • 3P-VCC

    CONNECTOR 3PIN FOR BOSCH CRS 3-25 WITH VCC SENSOR TECHNOLOGY [CRUR-MTBR-TBCR]

  • 3P-VCC-KIT

    KIT OF 4 CONNECTORS 3PIN FOR BOSCH CRS 3-25 WITH VCC SENSOR TECHNOLOGY [CRUR-MTBR-TBCR]

  • 4P-NCA

    CONNECTOR 4PIN FOR BOSCH PIEZO CRS 3-27 WITH NCA SENSOR TECHNOLOGY [CRUR-MTBR-TBCR] FOR BMW

  • 4P-NCA-KIT

    KIT OF 4 CONNECTORS 4PIN FOR BOSCH PIEZO CRS 3-27 WITH NCA SENSOR TECHNOLOGY [CRUR-MTBR-TBCR] FOR BMW

  • EXT.50

    EXTENSION INJECTOR CABLE 50cm

  • iART-B

    INJECTOR CONNECTOR DENSO 6PIN [REQUIRES PIRV.10-02]

  • iART-C

    INJECTOR CONNECTOR DENSO 6PIN

  • CZ-007719

    RDS MEASUREMENT ELECTRICAL CONNECTORS KIT FOR ITB.1R|X & ITB.4R|X

  • CZ-007586

    DENSO iART INJECTOR ELECTRICAL HARNESS TYPE 1 FOR PRESSURE & TEMPRATURE CHECK ( iTBR|X )

    CZ-007590 or CLOUDX Coins REQUIRED

  • CZ-007589

    DENSO iART INJECTOR ELECTRICAL HARNESS TYPE 2 FOR PRESSURE & TEMPRATURE CHECK ( iTBR|X )

    CZ-007590 or CLOUDX Coins REQUIRED

  • CZ-007188

    ELECTRICAL ADAPTER CABLE (Delphi E3)

  • UAC-01

    GENERIC CABLE ADAPTER FOR CRIN / UNIT INJECTOR

  • UIS.01-VLV.01

    DELPHI F2P-1 EURO 6 INJECTOR PUMP SYSTEM [REQUIRES CZ-007188] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005601

    CRIN SIDE FEED ADAPTER CRS.01.B FOR IVECO/CUMMINS (KAMAZ,DCEC,DONGFENG,CDC,VW/FORD)/DODGE/DURAMAX (SUC. CRS.01, CRS.16)

  • CZ-005980

    CRIN SIDE FEED ADAPTER CRS.02.B TESTING CUMMINS CLAMP DIAM.26MM FOR NOZZLE HOLDERS SIMILAR A1l (1.685.720.297 ) .

  • CRS.03

    KHD/DEUTZ(BOSCH)[UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005960

    CRIN SIDE FEED ADAPTER CRS.04.B TESTING CLAMP FOR NOZZLE HOLDERS FOR RENAULT PREMIUM. DIAM.32MM

  • CRS.05

    FUSO TRUCKS (DENSO-6M60) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.06

    FUSO TRUCKS (BOSCH-6M70) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005961

    CRIN SIDE FEED ADAPTER CRS.07.B TESTING CUMMINS TRUCK INJECTORS. DIAM. 26MM. NOTE INJECTORS 2872331, 180311380, X834W6VDU

  • CRS.10

    FORD 6.4L POWER STROKE (REQUIRES INJECTOR HARNESS CONNECTOR PDE-P) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005964

    CRIN SIDE FEED ADAPTER CRS.11.B TESTING CLAMP FOR NOZZLE HOLDERS FOR RENAULT PREMIUM. DIAM.32MM

  • CZ-005991

    CRIN SIDE FEED ADAPTER CRS.12.B FOR TESTING VOLVO-DEUTZ TRUCK INJECTORS

  • CRS.13

    MTU-BOSCH (REQUIRES EL.CONNECTOR UAC.01) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.14

    DENSO OFF-HIGHWAY / KOMATSU

    KOMATSU 6156113100 / 06D0413 / 05C0064 / 121105N1232 / 6156113100 / 06D0413 [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28)

  • CRS.18

    IVECO [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.19

    MECHANICAL INJECTOR REQUIRES UIP.01/02/03/04 [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005992

    CRIN SIDE FEED ADAPTER CRS.21.B FOR DELPHI DAF INJECTOR  (REQUIRES EL.CONNECTOR DEU-01)

  • CRS.22

    BOSCH KBEL162S93300BAR-790 [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.23

    CAT938H/CAT S2L106362752/ CAT 938H/ PERKINS 2645A734[UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.24

    FOR ACTROS / BOSCH CRIN 4.2 (up to 2 Slots) Requires BCN.B (2pcs) [suggested IMA 4.2 SW] (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005982

    CRIN SIDE FEED ADAPTER CRS.25.B FOR TESTING MAN TRUCK INJECTORS. DIAM. 29MM (SUCCESSOR OF CRS.17 & CRS.25)

  • CZ-005962

    CRIN SIDE FEED ADAPTER CRS.26.B FOR TESTING DENSO TRUCK INJECTORS

  • CZ-005981

    CRIN SIDE FEED ADAPTER CRS.27.B FOR TESTING DENSO TRUCK INJECTORS. DIAM.23.5MM (SUCCESSOR OF CRS.27 & CRS.09)

  • CZ-005993

    CRIN SIDE FEED ADAPTER CRS.28.B FOR SCANIA XPI

  • CZ-005939

    CRIN SIDE FEED ADAPTER CRS.29.B FOR TESTING INJECTORS VOLVO 22490430 / 21952974 / RENAULT 7422490430.

  • CZ-005984

    CRIN SIDE FEED ADAPTER CRS.30.B FOR TESTING BOSCH CRIN INJECTORS 0.445.124.025 AND SIMILAR

  • CRS.31

    DENSO OFF-HIGHWAY / CATERPILLAR - PERKINS DENSO CRIN

    C4.2 / C4.4 / C7.1 / C6.4 / C6.6 / C7.1 / D6N / 3000 / D6K2 / M322F / M320F DENSO 3707282 / 3707281 / 05P03776 / 20R2478 / 2645A751 / 2645A720 / 10R7674 / 3200655 / 2923755 / 3069355/ 3707280 / 4183229 295050-0361 / 295050-036# / 295050-0401 / 295050-0330 / 295050-1810 [UP TO S/N #4419

    REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.32

    DELPHI CRIN EURO 6 SMART INJECTOR A9361987/EP3770/11235/09771[UP TO S/N #4419 (REQUIRED TO BE ORDERED WITH CZ-005974, CZ-005950 & CZ-005829) (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28) [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.33

    DELPHI CRIN EURO 6/5 SMART INJECTOR 073921083/1667208

    (REQUIRES EL.CONNECTOR DEU-01)[UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005985

    CRIN SIDE FEED ADAPTER CRS.34.B FOR TESTING DELPHI INJECTORS DIAM. 26MM. A0030179112, BEBJ1A02001 ( MERCEDES)

  • CRS.35

    L’ORANGE (VTO - G266W488 CAL 934759) ADAPTER KIT INCLUDES HP CONNECTOR 12Mx1,5/23Fx1,5 w/ RELIEF

    (REQUIRES EL.CONNECTOR UAC.01 & RSP.HD w/HDA.03)[UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CRS.36

    QSK Heavy Duty Injector [Bosch OE:Y431K05392/ Cummins:2867147 / Bosch:F00BJ00000] / Includes: 2 HP CONNECTORS [HP12/22C]

    REQUIRES: RSP.HD w/ HDA.02 [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007356]

  • CZ-005994

    CRIN SIDE FEED ADAPTER CRS.37.B FOR DAF ( REQUIRES DEU.01 )

  • CZ-008458

    ADAPTER CRS.38 FOR INJECTOR IVECO (EURO 6)

  • CZ-005983

    CRIN SIDE FEED ADAPTER CRS.39.B FOR TESTING INJECTORS CAT / PERKINS C9.3, 20R-5036/5073, 456 3493

  • CZ-007669

    ADAPTERS CRS.40/1 & CRS.40/2 KIT FOR INJECTOR MTU-8000 FOR MTBR|X & ITB.4R|X REQUIRES COOLING SYSTEM

  • CZ-007625

    ADAPTER CRS.41 FOR INJECTOR XPI 4307475

  • CZ-007624

    ADAPTER CRS.42 FOR INJECTOR DENSO 295050-173

  • CZ-005410

    CRIN SIDE FEED ADAPTER CRS.43

  • CZ-007634

    ADAPTER CRS.44 FOR INJECTOR QSK 95

  • CZ-007709

    ADAPTER CRS.45 FOR TESTING MTU INJECTOR ( F00B00J00056 )

  • CZ-500088

    CRIN SIDE FEED INJECTOR ADAPTER CRS.47 FOR F3P, DAF, VOLVO PACCAR, EU7

  • BC.01

    Bosch Coding IMA/ISA

  • BC.01

    Bosch Coding IMA/ISA

  • BC.01

    Bosch Coding IMA/ISA

  • CZ-002380

    CARBON ZAPP BASE TROLLEY

  • CZ-002507

    CAMBOX/PUMP TRANSFER RACK ( MAX. 2 Pcs PER TROLLEY )

  • CZ-002587

    CRp FLANGE DRAWER ORGANIZER ( MAX. 1 Pc PER TROLLEY )

  • CZ-002765

    HOSE & HARNESS SIDE ORGANIZER ( MAX.2 PER TROLLEY )

  • CZ-007324

    ULTRA SONIC SHELF FOR GTBr|X, ITBR|X, HTBR|X

  • CZ-800111

    GDi (1 Slot) Injector Hydraulic Retrofit Kit For ITB.1R|X & ITB.4R|X

  • CZ-800114

    GDi (4 Slot) Injector Hydraulic Retrofit Kit For ITB.4R|X

  • GDi.WIRES-KIT.02

    EXCLUSIVE GDi WIRES KIT INCLUDES: BCI.01, BPI.01, DGxS-B, DGxS-C each cde included per piece

  • BFK.02.B

    BACK FLUSH KIT (For 4 Slots units)

  • UB-15S

    HEAT CONTROL/ 42KHZ / 1.75L [FOR R & X UNITS REQUIRES EXT.50]

  • UB-15E/110V

    SWEEP TECHNOLOGY 31-42KHZ/DEGAS/HEAT/1.5L/ 51x137x100mm-110V (ELMA) [FOR R & X UNITS REQUIRES EXT.50]

  • UB-15E/220V

    SWEEP TECHNOLOGY 31-42KHZ/DEGAS/HEAT/1.5L/ 51x137x100mm-220V (ELMA) [FOR R & X UNITS REQUIRES EXT.50]

  • UB-30E

    ULTRASONIC BATH STANDARD: HEAT CONTROL/ 2,75L/ 240x137x100mm (ELMA) [WITHOUT COVER & BASKET]

  • UB-60E

    ULTRASONIC BATH STANDARD: HEAT CONTROL/ 5,75L/ 300x151x150mm (ELMA) [WITHOUT COVER & BASKET]

  • UB-120E

    ULTRASONIC BATH STANDARD: HEAT CONTROL/12,75L/ 300x240x200mm (ELMA) [INCLUDED COVER & BASKET]

  • UB-120

    ULTRASONIC BATH STANDARD: HEAT CONTROL/12,75L/ 300x240x200mm (ELMA) [WITHOUT COVER & BASKET]

  • UB-450E

    HEAT CONTROL/ 45L/ 500x300x300mm (ELMA) [WITHOUT COVER & BASKET]

Product Overview
Видео 1
Видео 1

ITB.4R-X Carbon Zapp — professional test bench for Common Rail diesel injector testing and coding

ITB.4R-X Carbon Zapp is a professional test bench for diagnostics, testing and coding of Common Rail diesel injectors used in modern fuel injection systems. The bench is designed for diesel service centers, fuel system repair workshops and remanufacturing facilities requiring highly accurate, stable and fast testing of all injector types.

ITB.4R-X enables simultaneous testing and coding of up to 4 injectors and supports key Common Rail technologies including CRDi and CRiN EU6 and Heavy-Duty systems. This allows a complete injector diagnostic workflow on a single piece of equipment without additional benches.

Comprehensive EU6 and Heavy-Duty injector testing

The ITB.4R-X bench provides precise and repeatable injector testing at pressures up to 2800 bar and supports modern EU6 standards for passenger, commercial and heavy-duty diesel systems.

The bench allows testing of:

  • Common Rail injectors (CRDi)
  • CRiN Heavy-Duty injectors
  • EU6 generation injectors (Bosch, Denso, Delphi, Continental/VDO)
  • XPI and CRIN 4.2 injectors
  • large diesel engine injectors
  • rail pressure sensors (RDS)
  • high-pressure rails

ITB.4R-X is fully compatible with injectors from Bosch, Denso, Delphi, Continental/VDO and other manufacturers, ensuring universal application in diesel service and fuel system repair.

CloudX — digital bench management platform

ITB.4R-X is equipped with the Carbon Zapp CloudX cloud platform providing digital control and remote diagnostics.

CloudX provides:

  • remote bench access
  • online test database updates
  • test reports and protocols
  • remote technical support
  • multi-bench management
  • service notifications

CloudX improves equipment efficiency and meets Industry 4.0 requirements.

AutoModern is the official Carbon Zapp distributor and technology bridge to the manufacturer, providing equipment supply, implementation, training and professional technical support for diesel service centers.
