ITB.1R | X Carbon Zapp Code(SKU) CZ-008799

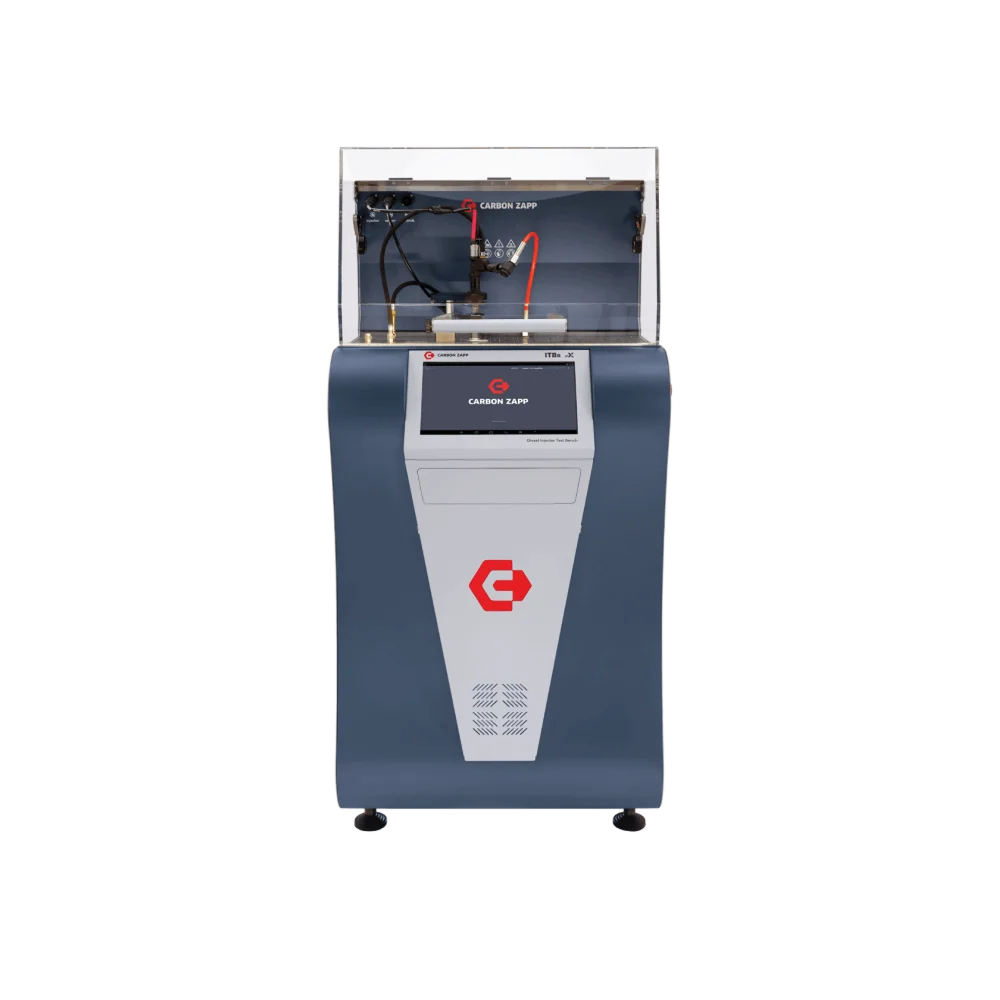

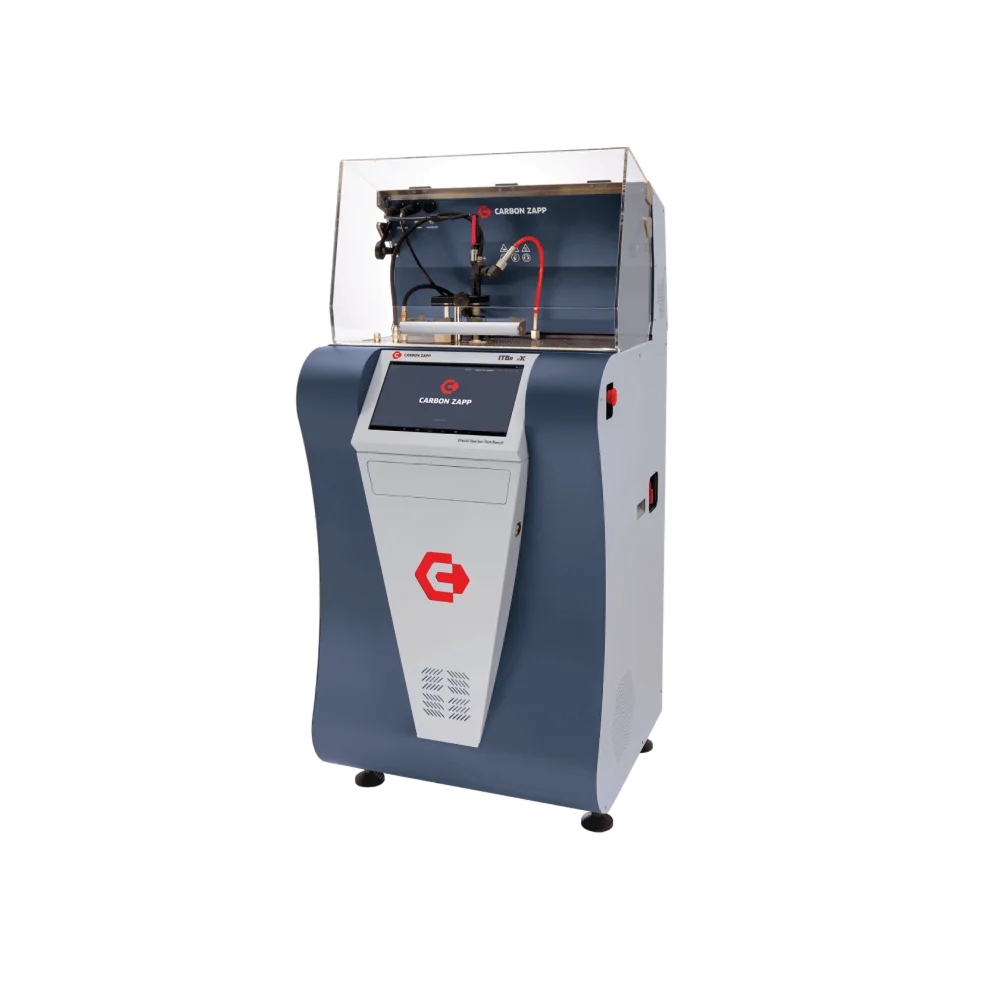

ITB.1R-X Carbon Zapp — professional test bench for diagnostics, testing and coding of a single Common Rail diesel injector (CRDi and CRiN).
A compact solution for diesel service centers and fuel system repair workshops providing precise testing and coding of EU6 and Heavy-Duty injectors from all manufacturers (Bosch, Denso, Delphi, Continental/VDO and others).
ITB.1R-X advantages:
- testing and coding of 1 CR injector
- support for CRDi and CRiN EU6 technologies
- pressure up to 2800 bar
- compatibility with all injector brands
- Heavy-Duty injectors (XPI, CRIN 4.2 and others)
- delivery and return flow measurement
- CloudX platform
-
ITB.1R|X-Pack1 (STANDARD PACKAGE)
Exclusive Package Includes: [CZ-007356, SVI.01, BCI.01, CZI.01, BCN.B, DFI.01, DFI.02, BPI.01, DEU.01, DGXS-A, DGXS-B, DG2P-A, DG3P-A)x1]
-
ITB.1R|X-Pack_2
Exclusive CRDi Coding Package Includes: [BC.01, DLC.03, DNC.04.v2, RSP, 007116)x1]
-
ITB.1R|X-Pack_3
Exclusive Specialists CRDi coding Package Includes: [BC.01, DLC.03, DNC.04.v2, CZ-007359, RSP, 007116, CRS.24, CZ-007114)x1, BCN.Bx1] [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007350 & CZ-007356]
-
BC.01
Bosch Coding IMA/ISA
-
DLC.03
DELPHI CODING C2i AND C3i (Requires RSP)
-
DNC.04.v2
DENSO CODING QR Including QR-32 (Requires RSP)
-
DNC.05
DENSO CODING SOFTWARE QR-32 [Requires RSP]
-
DNC.06
DENSO CUMMINS CODING SOFTWARE QR-28 [Requires RSP]
-
VC.15
ALL MAKES VDO CODING [FOR NON-DRS PARTNERS ONLY] (Requires RSP)
-
CZ-008775
CAT CRI - CATERPILLAR CODING SOFTWARE [Requires RSP]
-
DLC.04
C4i Delphi Coding.[Requires RSP , CZ-007361 , CZ-007347]
-
CZ-007707
License activation for Pressure Sensor Element [RDS]
-
CZ-007177
DAF-I - DAF Smart Injector Coding MTBR/ITBR/TBCR/DCDR [Requires RSP]
-
CZ-800150
DAFi (EU6) Injector Coding MTBR/ITBR/ETBRX/TBCR/DCDR [Requires RSP (Y25)]
-
CZ-800210
CZ-800210
-
GCC.06
SIEMENS / VDO GDI CODING (BMW 10181010)
-
GBC
BOSCH GASOLINE ACTIVATION LICENSE
-
ΑΖΟ.GD-i
SOFTWARE UPGRADE LICENSE FOR TESTING GASOLINE GDi & MPFi INJECTORS
-
CZ-007590
DENSO iART INJECTOR SOFTWARE ACTIVASION FOR PRESSURE & TEMPRATURE CHECK
-
CZ-007608
VDO/CONTINENATL IIC.2 CODING (REQUIRES RSP (Y25))
-
IMA 4.2
BOSCH CRIN 4.2 IMA CODING MTBR/ITBR/TBCR/DCDR
-
CZ-007659
CGL License for activation
-
JD.01
John Deere Injector Coding Software for AZO (Requires RSP (Y25)) ( For All engines except ISUZU & CAT )
-
JD.02
John Deere Injector Coding Software for AZO (Requires RSP (Y25)) ( for CAT engines )
-
JD.03
John Deere Injector Coding Software for AZO (Requires RSP (Y25)) ( for ISUZU engines )
-
CZ-007359
DIESEL CRi INJECTOR PRESSURIZED RETURN HOSE ADAPTERS KIT (PIR) [Includes 0.8 / 1.3 / 2 / 6 / 10 bar] [UP TO S/N #4419 REQUIRED TO BE ORDERED WITH CZ-007350]
-
CZ-007350
DIESEL CRi INJECTOR RETURN HOSE ADAPTERS KIT (BCL)
-
CZ-007356
MAIN BACK LEAK HOSE FOR INJECTOR RETURN ADAPTERS
-
RSP (Y25)
STANDARD NOZZLE ( 7-9mm ) RESPONSE DEVICE - RSP (Y25)
-
CZ-007116
MAIN RSP (Y25) [sh] HARNESS FOR ITB.1R|X [SUCCESSOR: ITB1rX-sh.RSP (Y25)]
-
SPR.D
ILLIMINATED PRESSURISED SPRAY CHAMBER.(REQUIRES CZ-007117)
-
CZ-007117
MAIN LED [sh] HARNESS FOR ITB.1R|X SPRAY TUBES [SUCCESSOR: ITB1rX-sh.LED]
-
RSP.HDv25
HEAVY DUTY NOZZLE RESPONSE SENSOR - RSP.HDv25
( INCLUDED ADAPTER HDA.01 (7-9mm). REQUIRES COOLING SYSTEM T.B.A. )
REQUIRES RSP HARNESS [SUCCESSOR OF CZ-008145]
-
HDA.02
OPTIONAL FOR RSP.HDv25 (11mm-MTU, etc...)[/pc]
-
HDA.03
OPTIONAL FOR RSP.HDv25 (16mm- L'ORANGE, etc...)[/pc]
-
CZ-007395
ELECTRICAL CALIBRATED CABLE [ NOT INCLUDED SW ] COMPATIBILITY FOR CGL [RiD003793]
-
3P-VCC
CONNECTOR 3PIN FOR BOSCH CRS 3-25 WITH VCC SENSOR TECHNOLOGY [CRUR-MTBR-TBCR]
-
3P-VCC-KIT
KIT OF 4 CONNECTORS 3PIN FOR BOSCH CRS 3-25 WITH VCC SENSOR TECHNOLOGY [CRUR-MTBR-TBCR]
-
4P-NCA
CONNECTOR 4PIN FOR BOSCH PIEZO CRS 3-27 WITH NCA SENSOR TECHNOLOGY [CRUR-MTBR-TBCR] FOR BMW
-
4P-NCA-KIT
KIT OF 4 CONNECTORS 4PIN FOR BOSCH PIEZO CRS 3-27 WITH NCA SENSOR TECHNOLOGY [CRUR-MTBR-TBCR] FOR BMW
-
EXT.50
EXTENSION INJECTOR CABLE 50cm
-
CZ-007114
MAIN INJECTOR [ih] HARNESS FOR ITB.1R|X DUAL COILS [requires BCN.B] [SUCCESSOR:ITB1rX-ih.1/2]
-
iART-B
INJECTOR CONNECTOR DENSO 6PIN [REQUIRES PIRV.10-02]
-
iART-C
INJECTOR CONNECTOR DENSO 6PIN
-
CZ-007719
RDS MEASUREMENT ELECTRICAL CONNECTORS KIT FOR ITB.1R|X & ITB.4R|X
-
CZ-007586
DENSO iART INJECTOR ELECTRICAL HARNESS TYPE 1 FOR PRESSURE & TEMPRATURE CHECK ( iTBR|X )
CZ-007590 or CLOUDX Coins REQUIRED
-
CZ-007589
DENSO iART INJECTOR ELECTRICAL HARNESS TYPE 2 FOR PRESSURE & TEMPRATURE CHECK ( iTBR|X )
CZ-007590 or CLOUDX Coins REQUIRED
-
iHX.02H
INJECTOR HARNESS FOR HEUI INJECTOR C7-C9 FOR ADAPTER HUS.02 & CATERPILAR COMPONENTS
-
CZ-007188
ELECTRICAL ADAPTER CABLE (Delphi E3)
-
UAC-01
GENERIC CABLE ADAPTER FOR CRIN / UNIT INJECTOR
-
CZ-800228
CONNECTOR CABLE FOR CRIN4.2 DUAL COIL
-
UIS.01-VLV.01
FUEL SLEEVE ASSY FOR DELPHI F2 EURO 6 INJECTOR PUMP SYSTEM [REQUIRES CZ-007188 INJECTOR HARNESS]
{UP TO S/N: 012114419 - REQUIRES CZ-007356} (EXTRA REQ.ONLY FOR"R"UNITS HP-M12/F16x15 & D.28)
-
CRS.01.C
CRIN SIDE FEED ADAPTER CRS.01.C FOR IVECO/CUMMINS (KAMAZ,DCEC,DONGFENG,CDC,VW/FORD)/DODGE/DURAMAX
-
CRS.02.B
ADAPTER CRS.02.B TESTING CUMMINS CLAMP DIAM.26MM FOR NOZZLE HOLDERS SIMILAR A1l (1.685.720.297 ) .
-
CRS.03
ADAPTER CRS.03 FOR KHD/DEUTZ(BOSCH)
-
CRS.04.B
ADAPTER CRS.04.B TESTING CLAMP FOR NOZZLE HOLDERS FOR RENAULT PREMIUM. DIAM.32MM
-
CRS.05
ADAPTER CRS.05 FOR FUSO TRUCKS (DENSO-6M60)
-
CRS.06
ADAPTER CRS.06 FOR FUSO TRUCKS (BOSCH-6M70)
-
CRS.07.B
ADAPTER CRS.07.B TESTING CUMMINS TRUCK INJECTORS. DIAM. 26MM. NOTE INJECTORS 2872331, 180311380, X834W6VDU
-
CRS.10
ADAPTER CRS.10 FOR FORD 6.4L POWER STROKE (REQUIRES INJECTOR HARNESS CONNECTOR PDE-P)
-
CRS.11.B
ADAPTER CRS.11.B TESTING CLAMP FOR TESTING MAN BOSCH INJECTORS
-
CRS.12.C
CRIN SIDE FEED ADAPTER CRS.12.C FOR TESTING VOLVO-DEUTZ TRUCK INJECTORS
-
CRS.13
ADAPTER CRS.13 FOR MTU2000-BOSCH ( REQUIRES WIRING HARNESS CONNECTOR UAC.01 )
-
CRS.14
ADAPTER CRS.14 FOR DENSO MECHANICAL INJECTOR
-
CRS.18
ADAPTER CRS.18 FOR IVECO MECHANICAL INJECTOR
-
CRS.21.C
ADAPTER CRS.21.C FOR DELPHI DAF INJECTOR (REQUIRES EL.CONNECTOR DEU-01)
-
CRS.22
ADAPTER CRS.22 FOR BOSCH KBEL162S93300BAR-790
-
CRS.23
ADAPTER CRS.23 FOR CAT938H/CAT S2L106362752/ CAT 938H/ PERKINS 2645A734
-
CRS.24
ADAPTER CRS.24 FOR ACTROS / BOSCH CRIN 4.2 (up to 2 Slots) [suggested IMA 4.2 SW]
[Requires CZ-800228 & CZ-007114]
-
CRS.25.B
ADAPTER CRS.25.B FOR TESTING MAN TRUCK INJECTORS. DIAM. 29MM (SUCCESSOR OF CRS.17 & CRS.25)
-
CRS.26.C
ADAPTER CRS.26.C FOR TESTING DENSO TRUCK INJECTORS
-
CRS.27.B
ADAPTER CRS.27.B FOR TESTING DENSO TRUCK INJECTORS. DIAM.23.5MM (SUCCESSOR OF CRS.27 & CRS.09)
-
CRS.28.C
ADAPTER CRS.28.C FOR SCANIA XPI INJECTORS. DIAM. 40,5MM
-
CRS.29.C
CRIN SIDE FEED ADAPTER CRS.29.C FOR TESTING INJECTORS VOLVO 22490430 / 21952974 / RENAULT 7422490430.
-
CRS.30.B
ADAPTER CRS.30.B FOR TESTING BOSCH CRIN INJECTORS 0.445.124.025 AND SIMILAR
-
CRS.31
ADAPTER CRS.31 FOR DENSO JOHN DEERE (3707282 / 0401 / 11P 02228)
-
CRS.32
ADAPTER CRS.32 FOR DELPHI CRIN EURO 6 SMART INJECTOR A9361987/EP3770/11235/09771
-
CRS.33
ADAPTER CRS.33 FOR DELPHI CRIN EURO 6/5 SMART INJECTOR 073921083/1667208 (REQUIRES EL.CONNECTOR DEU-01)
SUGGESTED DAF-I SW
-
CRS.34.B
ADAPTER CRS.34.B FOR TESTING DELPHI INJECTORS DIAM. 26MM. A0030179112, BEBJ1A02001 ( MERCEDES)
-
CRS.35.B
ADAPTER CRS.35.B KIT FOR L’ORANGE HEAVY DUTY INJECTORS (VTO - G266W488 CAL 934759)
-
CRS.36.B
ADAPTER CRS.36.B KIT FOR QSK HEAVY DUTY INJ. [Bosch OE:Y431K05392/ Cummins:2867147 / Bosch:F00BJ00000]
-
CRS.37.C
CRIN SIDE FEED ADAPTER CRS.37.C FOR DAF ( REQUIRES DEU.01 )
-
CRS.38
ADAPTER CRS.38 FOR INJECTOR IVECO (EURO 6)
-
CRS.39.C
ADAPTER CRS.39.C FOR TESTING INJECTORS CAT / PERKINS C9.3, 20R-5036/5073, 456 3493
-
CRS.41
ADAPTER CRS.41 FOR INJECTOR XPI 4307475
-
CRS.43.B
CRIN SIDE FEED ADAPTER CRS.43.B FOR TESTING DENSO TRUCK INJECTORS DIAM. 27MM INJ. DENSO 295050-0610 / J.DEERE RE543605,543352
-
CRS.44
ADAPTER CRS.44 FOR INJECTOR QSK 95
-
CRS.45
ADAPTER CRS.45 FOR TESTING MTU INJECTOR ( F00BJ00056 )
FOR ITBR|X REQUIRES : CZ-003694, CZ-007678 , CZ-007741
-
CRS.47
CRIN SIDE FEED INJECTOR ADAPTER CRS.47 FOR F3P, DAF, VOLVO PACCAR, EU7
-
CRS.48
CRIN SIDE FEED INJECTOR ADAPTER CRS.48 FOR TESTING SCANIA XPI INJECTORS. NOTE: 2838297 E SIMILAR.
-
CZ-002380
CARBON ZAPP BASE TROLLEY
-
CZ-002507
CAMBOX/PUMP TRANSFER RACK ( MAX. 2 Pcs PER TROLLEY )
-
CZ-002587
CRp FLANGE DRAWER ORGANIZER ( MAX. 1 Pc PER TROLLEY )
-
CZ-002765
HOSE & HARNESS SIDE ORGANIZER ( MAX.2 PER TROLLEY )
-
CZ-007324
ULTRA SONIC SHELF FOR GTBr|X, ITBR|X, HTBR|X
-
CZ-800111
GDi (1 Slot) Injector Hydraulic Retrofit Kit For ITB.1R|X & ITB.4R|X
-
GDi.WIRES-KIT.02
EXCLUSIVE GDi WIRES KIT INCLUDES: BCI.01, BPI.01, DGxS-B, DGxS-C each cde included per piece
-
BFK.01.B
BACK FLUSH KIT (For 1 slot units)
-
D20L-ISO
CALIBRATION OIL ISO4113 FOR ALL DIESEL COMMON RAIL BENCHES w/ ELECTRONIC MEASUREMENT & TESTING UP TO 2800BAR [SUCCESSOR: B20L-AW2]
-
Y4L
ULTRASONIC CLEANING SOLVENT [4LT]
-
Y25L
ULTRASONIC CLEANING SOLVENT[25LT]
-
UB-15S
HEAT CONTROL/ 42KHZ / 1.75L [FOR R & X UNITS REQUIRES EXT.50]
-
UB-15E/110V
SWEEP TECHNOLOGY 31-42KHZ/DEGAS/HEAT/1.5L/ 51x137x100mm-110V (ELMA) [FOR R & X UNITS REQUIRES EXT.50]
-
UB-15E/220V
SWEEP TECHNOLOGY 31-42KHZ/DEGAS/HEAT/1.5L/ 51x137x100mm-220V (ELMA) [FOR R & X UNITS REQUIRES EXT.50]
-
UB-30E
ULTRASONIC BATH STANDARD: HEAT CONTROL/ 2,75L/ 240x137x100mm (ELMA) [WITHOUT COVER & BASKET]
-
UB-60E
ULTRASONIC BATH STANDARD: HEAT CONTROL/ 5,75L/ 300x151x150mm (ELMA) [WITHOUT COVER & BASKET]
-
UB-120E
ULTRASONIC BATH STANDARD: HEAT CONTROL/12,75L/ 300x240x200mm (ELMA) [INCLUDED COVER & BASKET]
-
UB-120
ULTRASONIC BATH STANDARD: HEAT CONTROL/12,75L/ 300x240x200mm (ELMA) [WITHOUT COVER & BASKET]
-
UB-450E
HEAT CONTROL/ 45L/ 500x300x300mm (ELMA) [WITHOUT COVER & BASKET]
ITB.1R-X Carbon Zapp — professional test bench for single Common Rail diesel injector testing and coding
ITB.1R-X Carbon Zapp is a professional test bench for diagnostics, testing and coding of a single Common Rail diesel injector used in modern fuel injection systems. The bench is designed for diesel service centers, fuel system repair workshops and remanufacturing facilities requiring highly accurate, stable and fast injector testing.
ITB.1R-X enables a complete testing and coding cycle for one injector and supports key Common Rail technologies including CRDi and CRiN EU6 and Heavy-Duty systems. Its compact configuration makes it an ideal solution for smaller workshops or as a dedicated injector testing station.
Comprehensive EU6 and Heavy-Duty injector testing
The ITB.1R-X bench provides precise and repeatable injector testing at pressures up to 2800 bar and supports modern EU6 standards for passenger, commercial and heavy-duty diesel systems.
The bench allows testing of:
- Common Rail injectors (CRDi)
- CRiN Heavy-Duty injectors
- EU6 generation injectors (Bosch, Denso, Delphi, Continental/VDO)
- XPI and CRIN 4.2 injectors
- heavy-duty diesel engine injectors
- rail pressure sensors (RDS)
- high-pressure rails
ITB.1R-X is fully compatible with injectors from Bosch, Denso, Delphi, Continental/VDO and other manufacturers, ensuring universal application in diesel service and fuel system repair.
CloudX — digital bench management platform
ITB.1R-X is equipped with the Carbon Zapp CloudX cloud platform providing digital control and remote diagnostics.
CloudX provides:
- remote bench access
- online test database updates
- test reports and protocols
- remote technical support
- multi-bench management
- service notifications
CloudX improves equipment efficiency and meets Industry 4.0 requirements.
